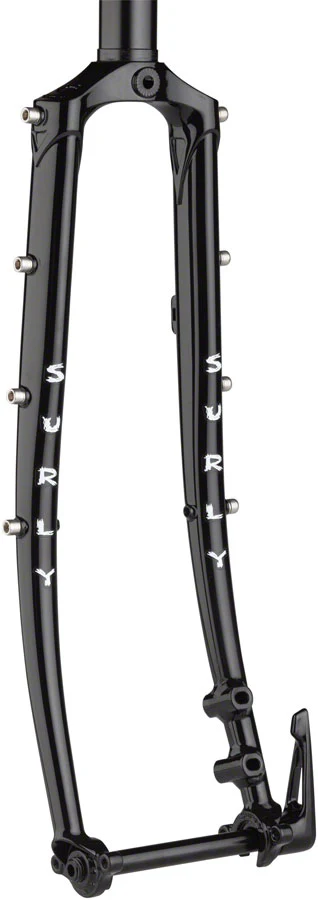

Surly Disc Trucker Fork - 1-1/8" Straight 100x12mm Thru-Axle Steel Disc Blackβ
$175.00
The Story
Equipped to make touring the wide worldβs paved roads a little more comfortable the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks fenders and additional cargo solutions. Available in 26Λ and 700c wheel sizes it offers dynamo routing a 1-1/8Λ threadless steerer tube and compatibility with 12mm captured thru-axles and flat-mount disc brakes.100% Chromoly steel construction curved blades powder coated Versatile three-pack mounts on the fork blades plus routing for Dynamo hubs Completely redesigned fork ends to accommodate 12mm captured thru-axles and flat-mount disc brakes Clearance for a 26 x 2.1" tire with or without fenders or 700c x 47mm with or without fenders Axle-to-crown height: 376mm for 26" 390mm for 700c Note: The Disc Trucker Thru-Axle Fork is compatible with the second-generation Disc Trucker model first released in 2020 (frames featuring rear thru-axle dropouts).
| Steerer Type | Straight |
| Max Rotor Size (Fork) | 160 |
| Color | Black |
| Brake Mount (Fork) | Flat Mount 160 |
| Crown Race | 30 |
| Wheel Size | 26", 700c |
| Offset | 45 |
| Material | Steel |
| Defined Color | Black |
| Maximum Tire Clearance (Fork) | 26x2.1, 700x50 |
| Axle to Crown Length | 376, 390 |
| Front Axle | 12mm Thru x 100mm |
| Front Hub Spacing (mm) | 100 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Steerer Tube Length (mm) | 350, 400 |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Equipped to make touring the wide worldβs paved roads a little more comfortable the Disc Trucker Thru-Axle Fork has three-pack mounts on each blade to give you space for racks fenders and additional cargo solutions. Available in 26Λ and 700c wheel sizes it offers dynamo routing a 1-1/8Λ threadless steerer tube and compatibility with 12mm captured thru-axles and flat-mount disc brakes.100% Chromoly steel construction curved blades powder coated Versatile three-pack mounts on the fork blades plus routing for Dynamo hubs Completely redesigned fork ends to accommodate 12mm captured thru-axles and flat-mount disc brakes Clearance for a 26 x 2.1" tire with or without fenders or 700c x 47mm with or without fenders Axle-to-crown height: 376mm for 26" 390mm for 700c Note: The Disc Trucker Thru-Axle Fork is compatible with the second-generation Disc Trucker model first released in 2020 (frames featuring rear thru-axle dropouts).
| Steerer Type | Straight |
| Max Rotor Size (Fork) | 160 |
| Color | Black |
| Brake Mount (Fork) | Flat Mount 160 |
| Crown Race | 30 |
| Wheel Size | 26", 700c |
| Offset | 45 |
| Material | Steel |
| Defined Color | Black |
| Maximum Tire Clearance (Fork) | 26x2.1, 700x50 |
| Axle to Crown Length | 376, 390 |
| Front Axle | 12mm Thru x 100mm |
| Front Hub Spacing (mm) | 100 |
| S.H.I.S. Stem Clamp Diameter | 28.6 |
| Steerer Tube Length (mm) | 350, 400 |
